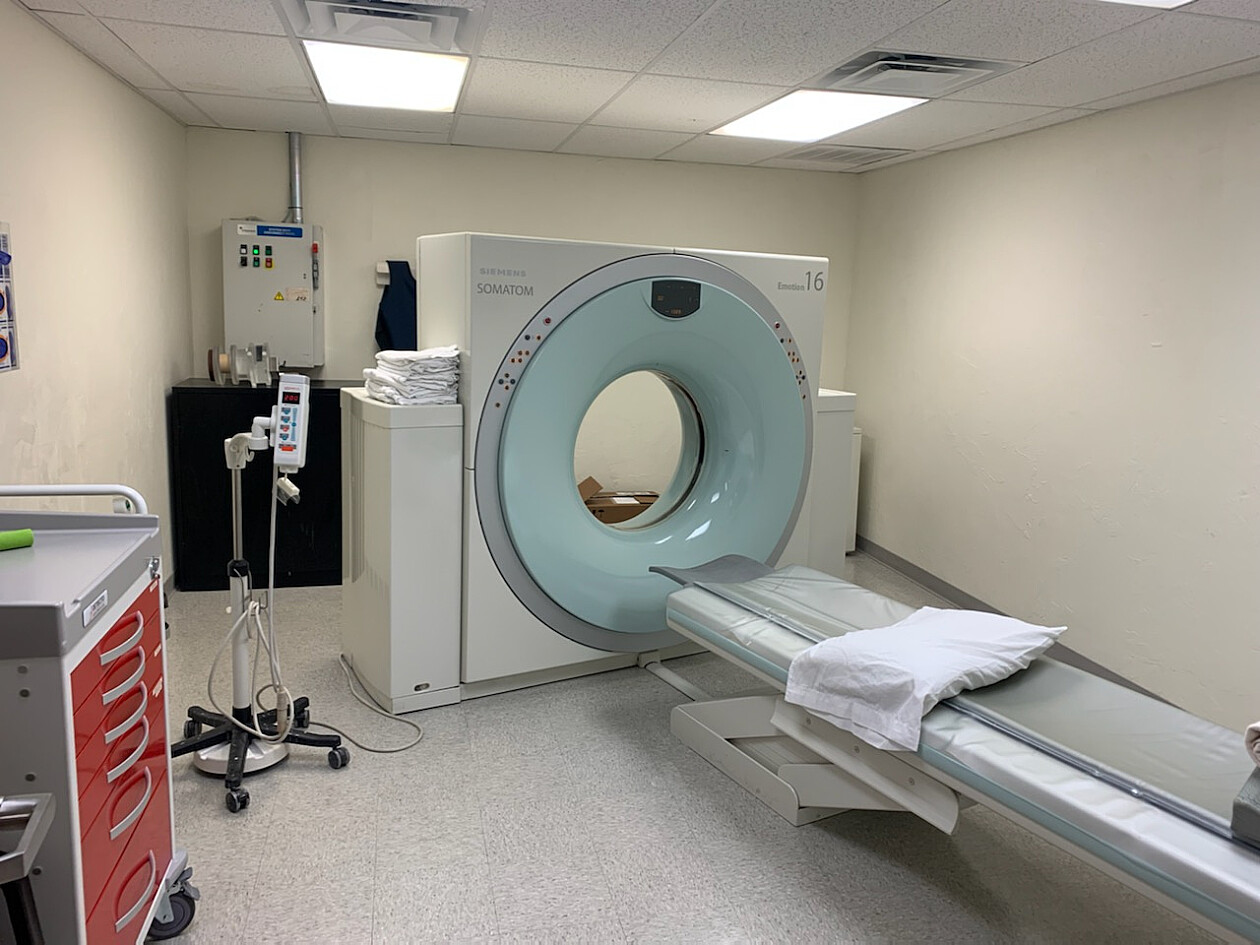

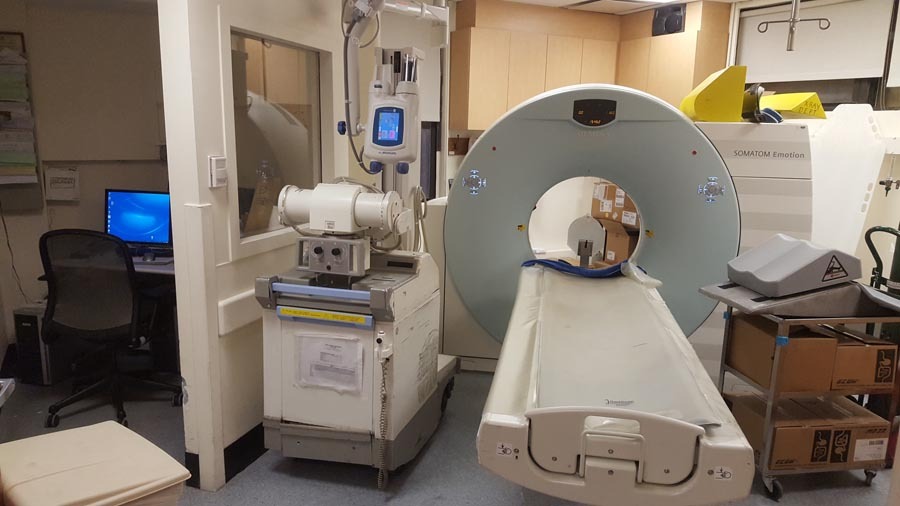

SYSTEM Model Siemens® Somatom Emotion 16,
Technical Configuration:
Model : Siemens® Somatom Emotion 16, 16-Slice CT scanner
Year of Manufacture : 2014
Available : Immediately subject to prior sale
Location : Installed in our showroom, India
Condition : Excellent technical and optical condition
Tube : Dura 422 MV

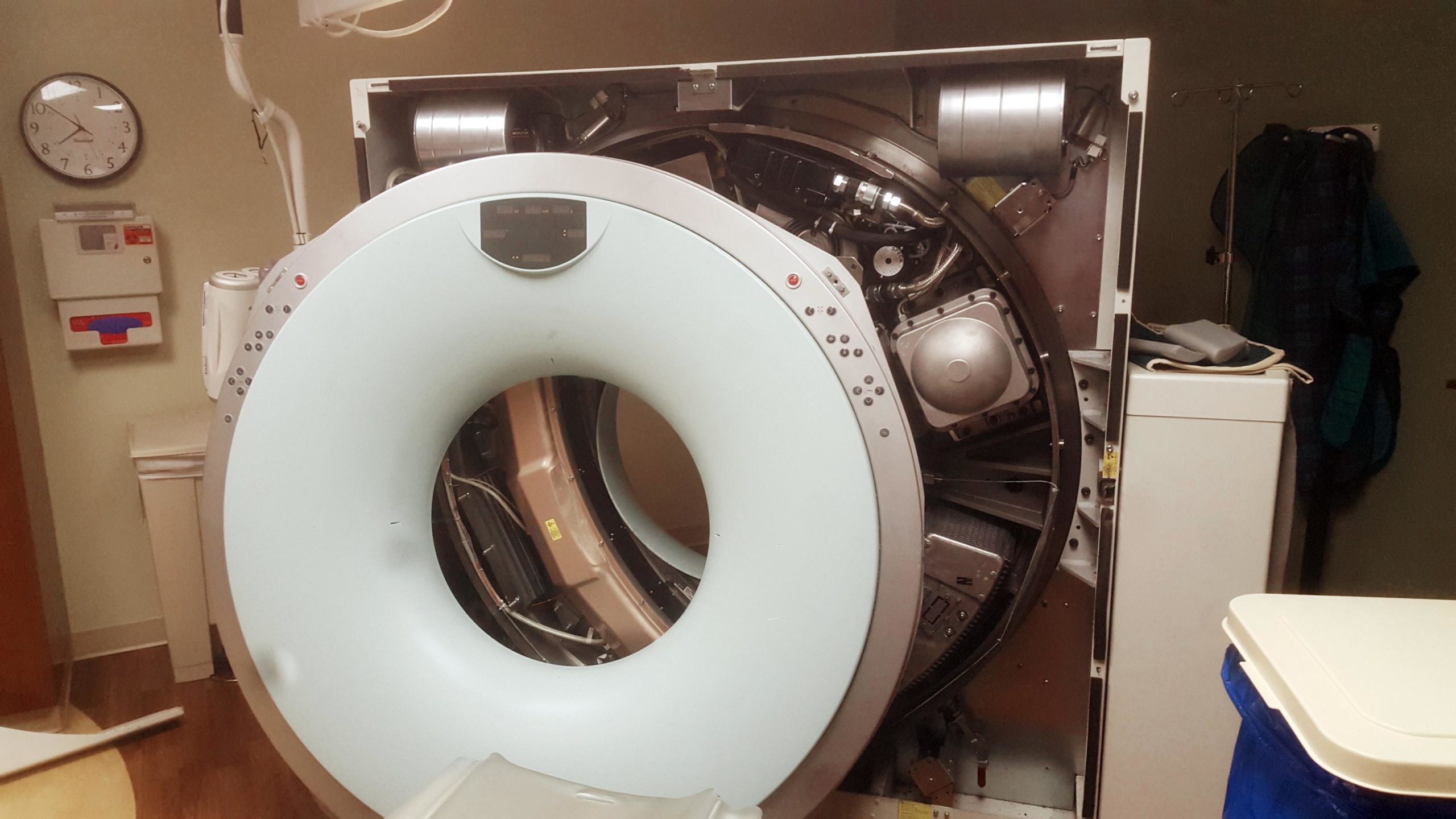

GANTRY:
Aperture 70 cm
Scan Field 50 cm
Tilt +/- 30°
Rotational times 0.6, 1.0, 1.5 s
DETECTOR Number of detector rows 16
Elements 17.664
Channels per slice 1.472
Number of projections Up to 1.250 (1/360°)
Max. slices / rotation 16

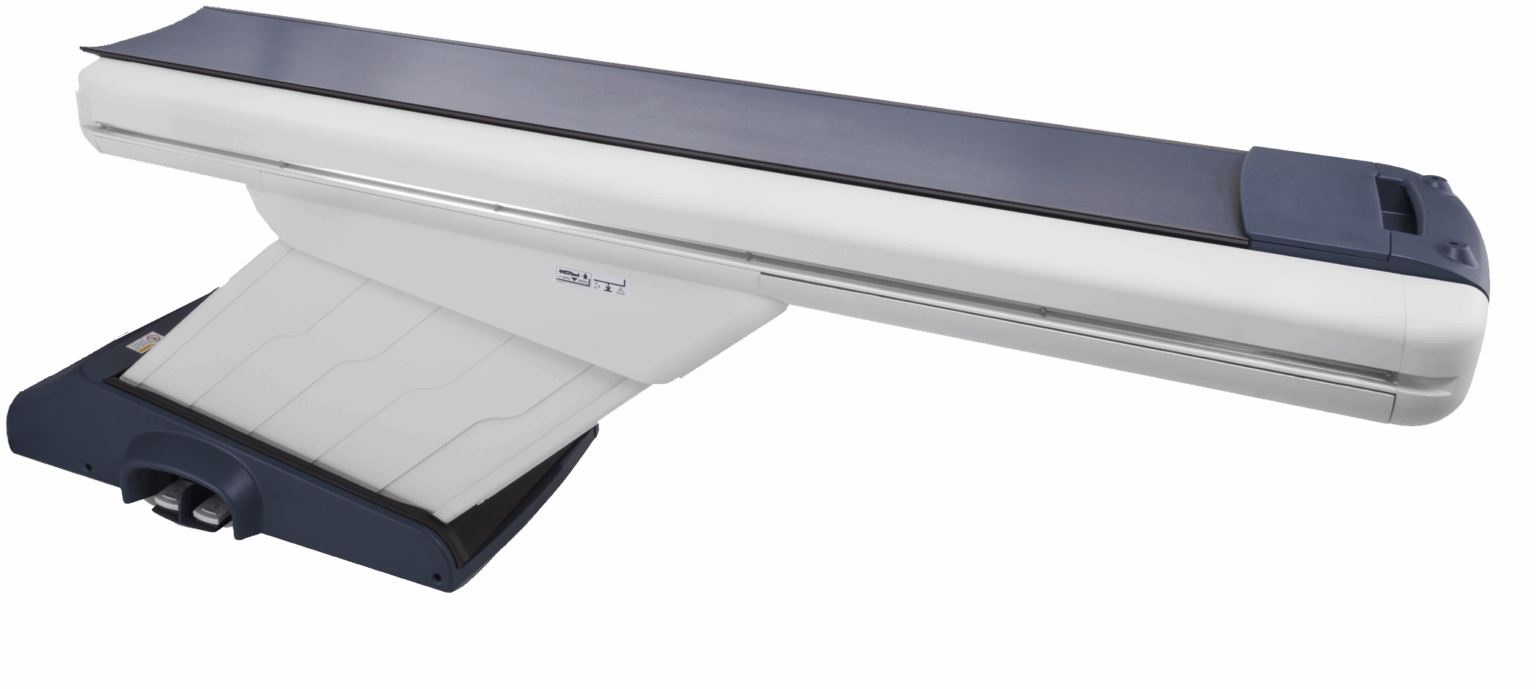

PATIENT TABLE
Max. table load 200 kg
Table speed 1–100 mm/s
Vertical table travel range 45–83 cm (at table top)
Vertical travel speed <22,4 mm/s
Scanable range (metal-free) 153 cm
INSTALLATION
Examination room Temperature range 18–30° C
Heat dissipation gantry max. 6.8 kW
Surface area for installation 18 m2
Power supply 380–480 V
Nominal line frequency 50; 60 Hz
Max. power connection <70 kVA
Power consumption System on standby <3,7 kW
Power consumption scanning <7,0 kW

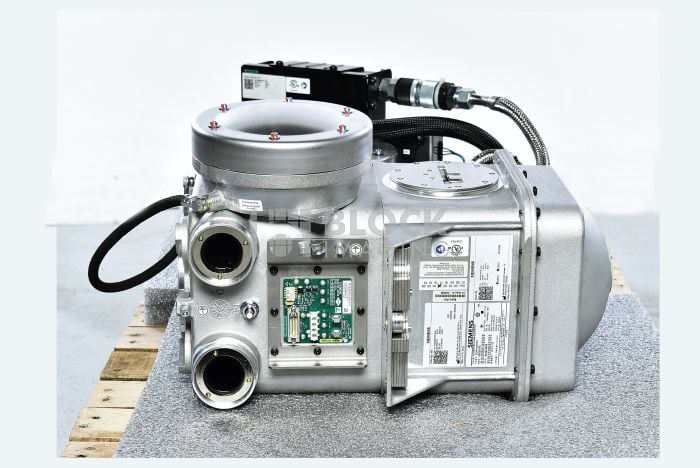

TUBE ASSEMBLY
Tube DURA 422MV
Tube current range– 20–345 mA
Tube voltages– 80, 110, 130 kV
Anode heat storage capacity- 5.0 MHU
Focal Spot size according to IEC 60336 0.8 x 0.5 mm/7° 0.8 x 0.7 mm/7°

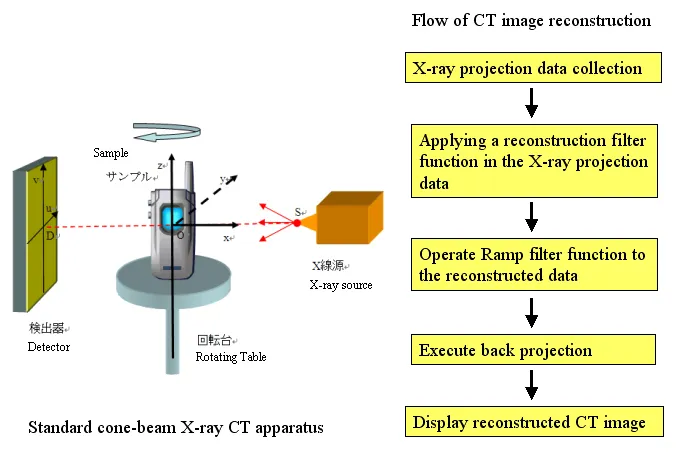

IMAGE RECONSTRUCTION
Reconstruction time up to 8 images/s
Reconstructed slice widths 0.6, 0.75, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0, 6.0, 8.0, 10.0 mm
Slice increment 0.1–10 mm
Pitch factor (Volume Pitch) 0.4–1.8
Spiral scan time max. 100 s
Scan length max. 150 cm
